PAL/NTSC auto switch

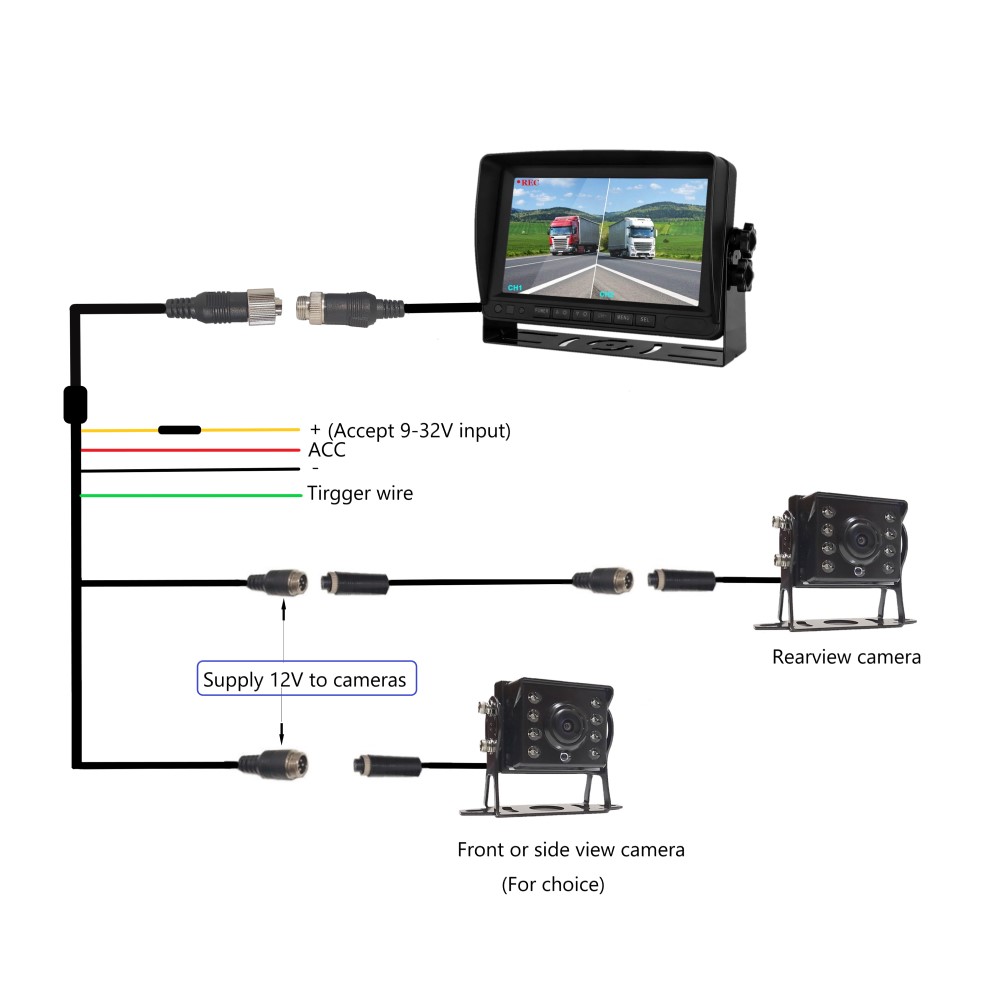

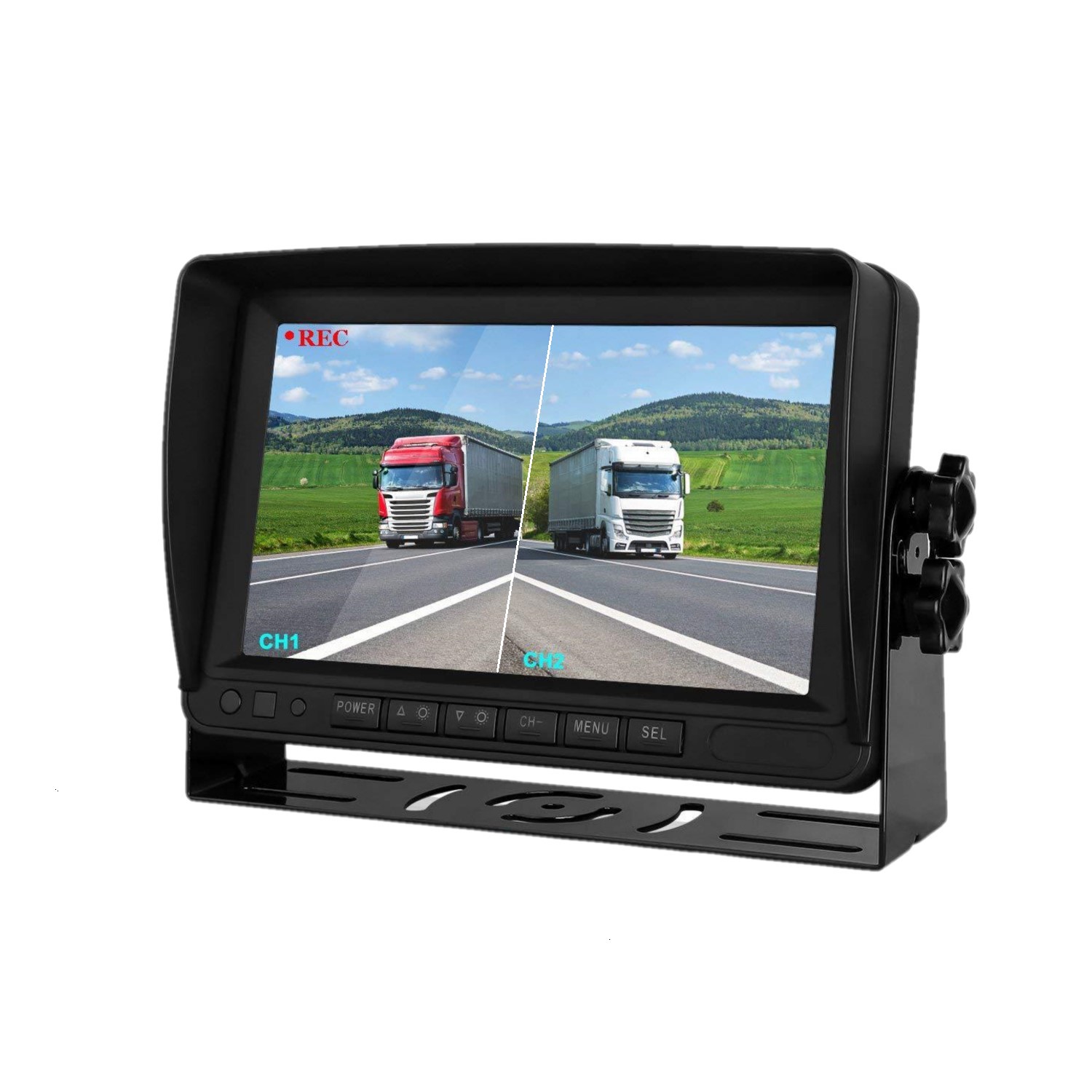

Support 2 cameras input, Support 2/1 image output meanwhile. with trigger wire

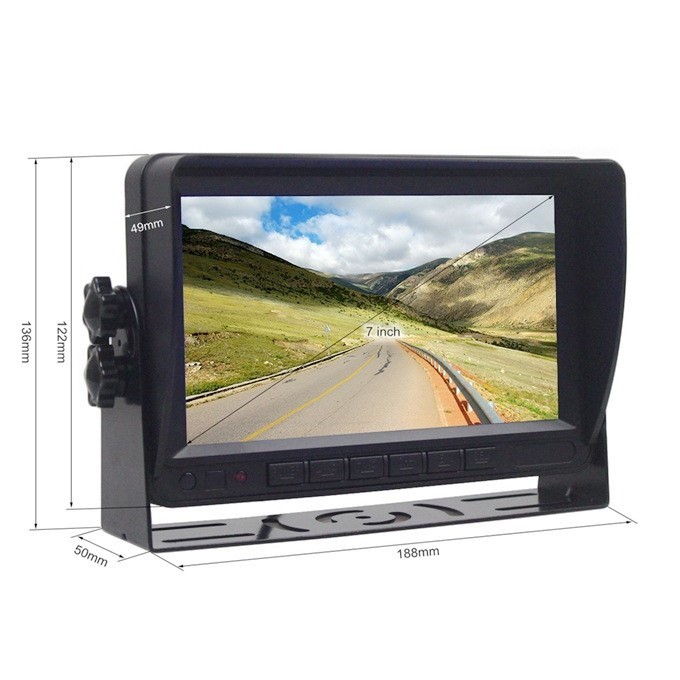

1024*600 IPS full view angle screen, brightness:500cd/m², Contrast: 500:1, view angle:U:80,D:80, R/L:80

Nominal input voltage:12V-24V, Current: <500ma, 4PIN Output:12V

Guide line switch, Original/mirrored image switch, flip switch

with sunshade panel

Support AHD1080P/960P/720P and CVBS cameras

Default 4pin aviation connector, RCA /4pin BMW/BNC need customize

With record and playback function, Video format:MOV, Support up to a 128G SD card

Automatic real-time loop recording

Lock screen can be record

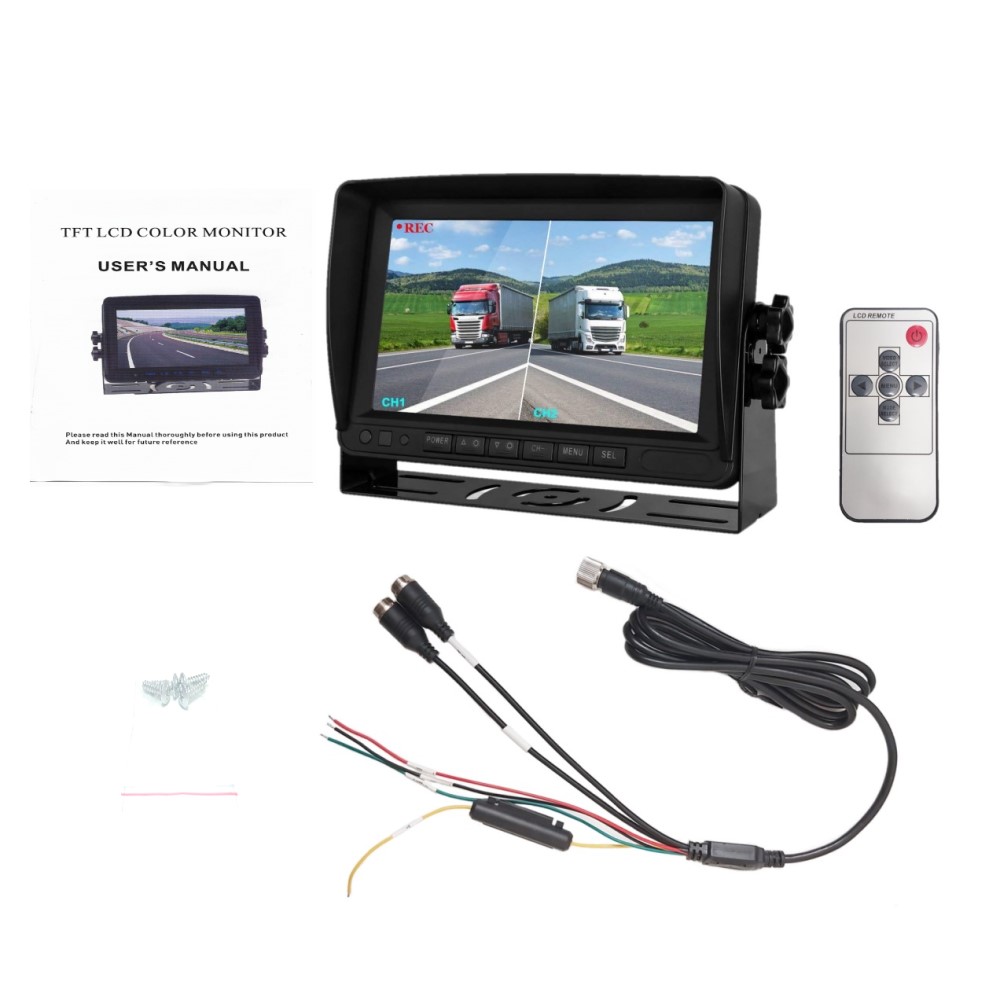

Accessories:monitor+Manual+Tail cable+bracket+sticker+remote control+screws+Sun canopy
