PAL/NTSC auto switch

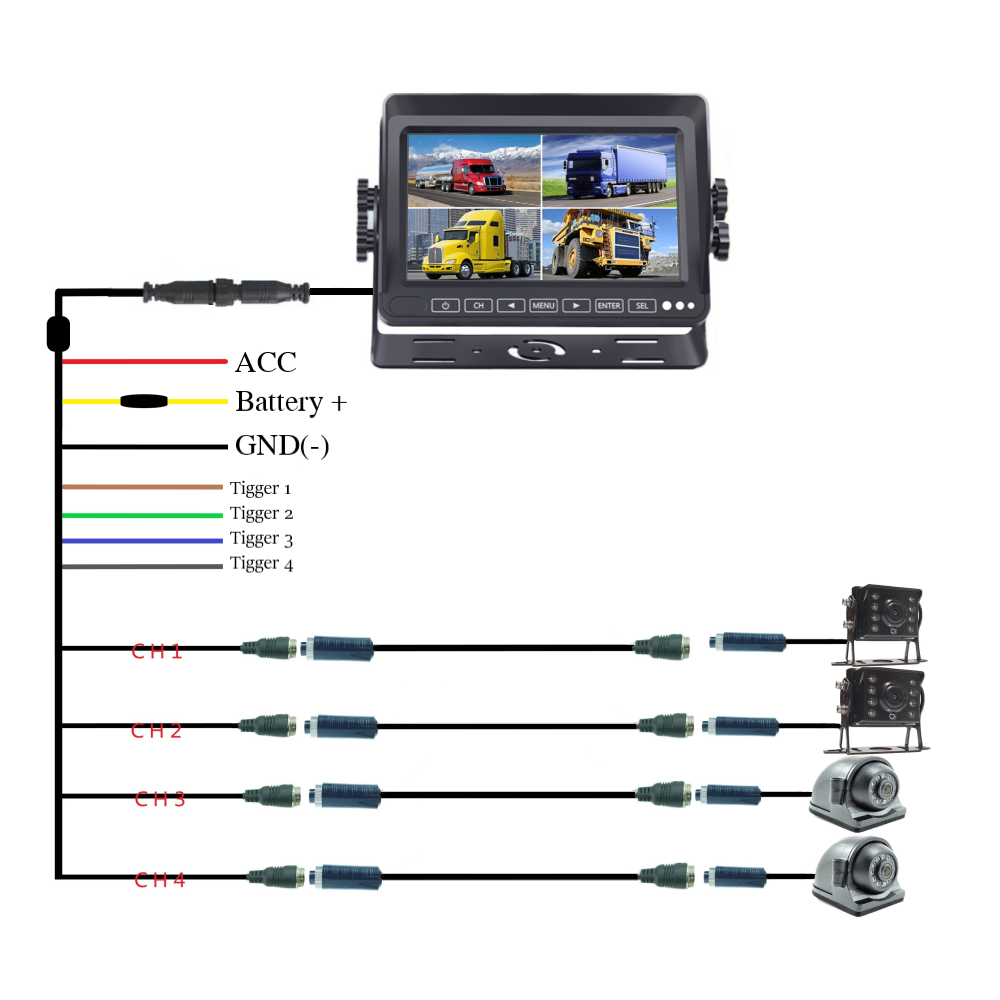

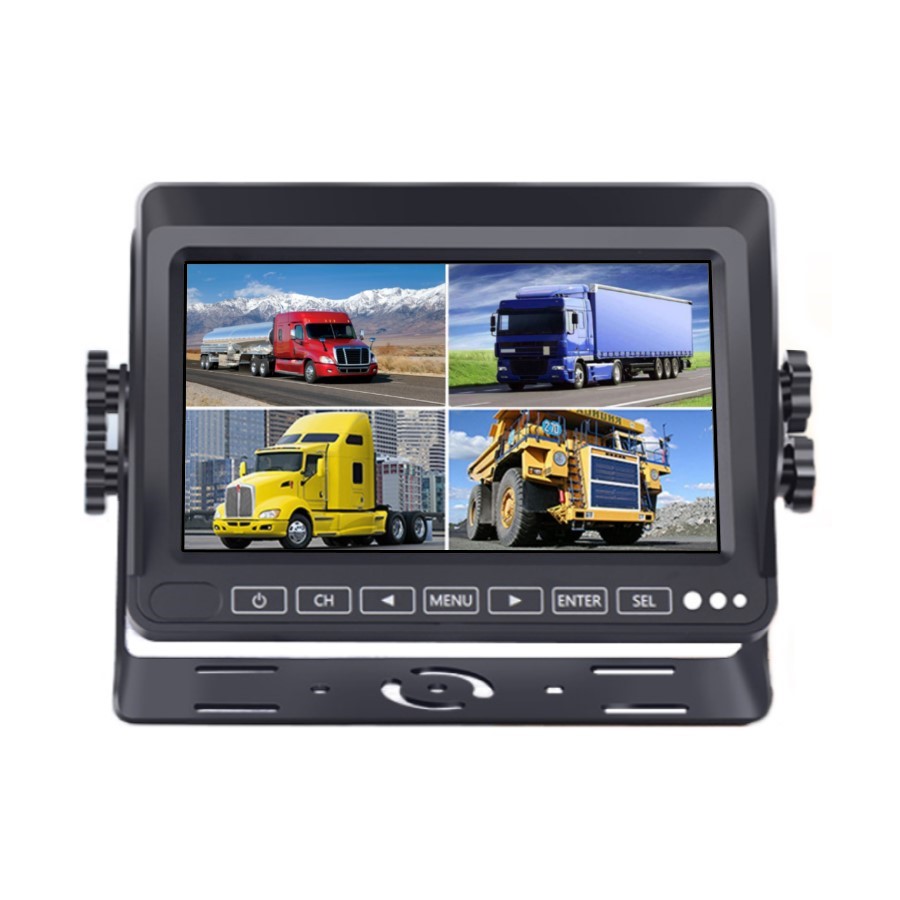

Support 4 cameras input, Support 4/3/2/1 image output meanwhile. 4 trigger wire, Trigger delay can be set for each separately channel.

IPS:1024*600, brightness:500cd/m², Contrast: 500:1, view angle:U:80,D:80, R/L:80

Nominal input voltage:12V-24V, Current: <500ma, 4PIN Output:12V

Guide line switch of each CHs, Image of each CH can be mirrored/flip separately, flip/mirrored overall.

Automatically adjust screen brightness

Touch button, with sunshade panel

Support AHD1080P/960P/720P and CVBS cameras and support mixed

Default 4pin aviation connector, RCA /4pin BMW/BNC need customize

With record and playback function, Video format:AVI, Supports up to a 256G SD card

Automatic real-time loop recording, Each record video max 10 mins

Lock screen can be record

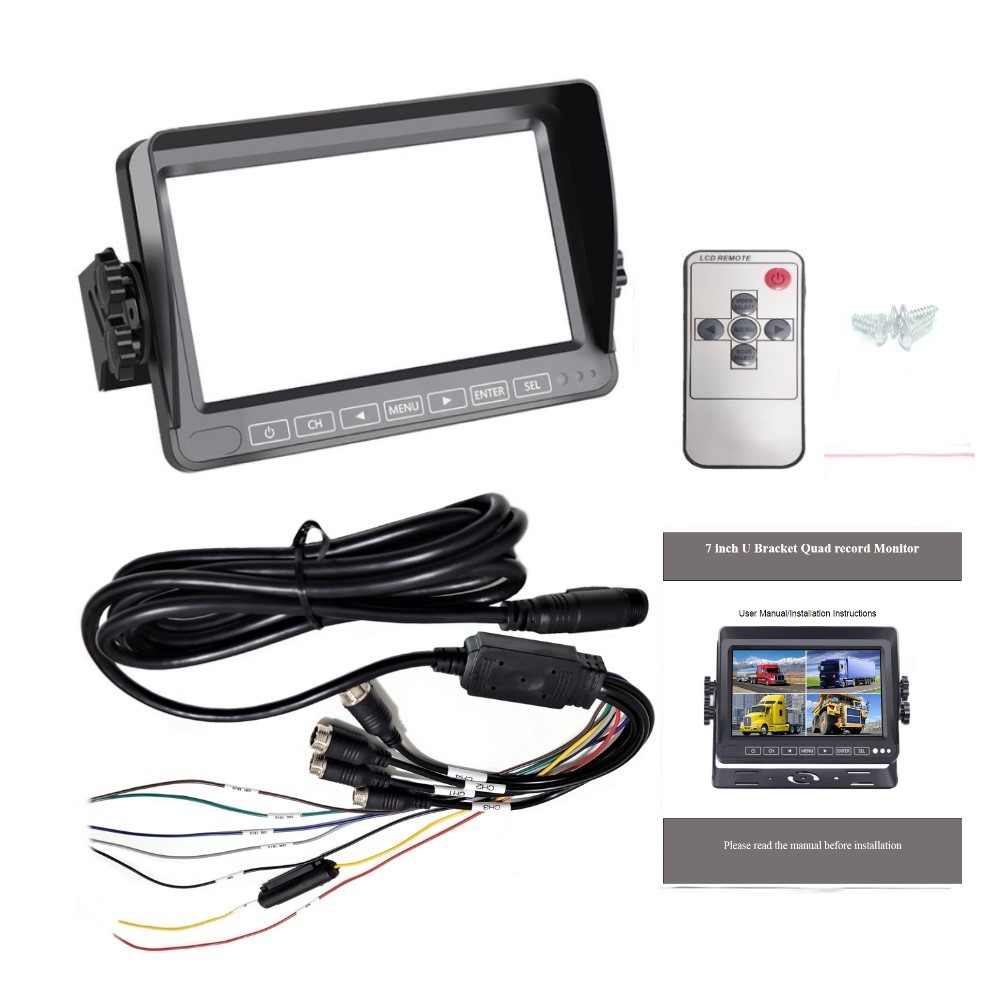

Accessories:monitor+Manual+Tail cable+bracket+sticker+remote control+screws+Sun canopy
