System Features

1. 2.4GHZ wireless module.Monitor matched Camera, No interference

2. Transmit power:22dbm(±1.5dbm),Transmission Distance:Less 300M

3. Accept 9-35V input

4. Operating temperature:-20℃～+70℃,Storage temperature:-30℃～+80℃

7 Inch Wireless Quad Record Monitor

1. 7 inch IPS 1024*600 LCD screen

2. Brightness:500cd/m²,Contrast:500:1

3. Max Support 4 * wireless cameras input

4. Support language:Chinese/English/Dutch/Finnish/Korean/Russian/Portuguese/Spanish/

Italian/German/French

5. Adjustable Guide line of each CH, mirrored/flip image switch of each CH

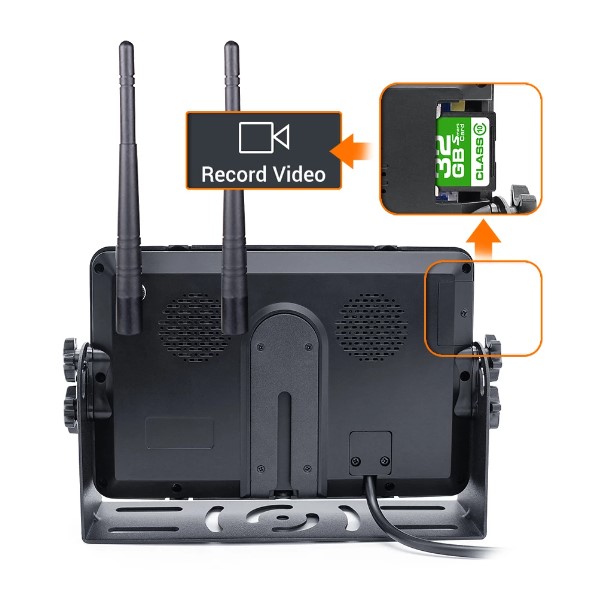

6. Record function,Support a 512G SD card

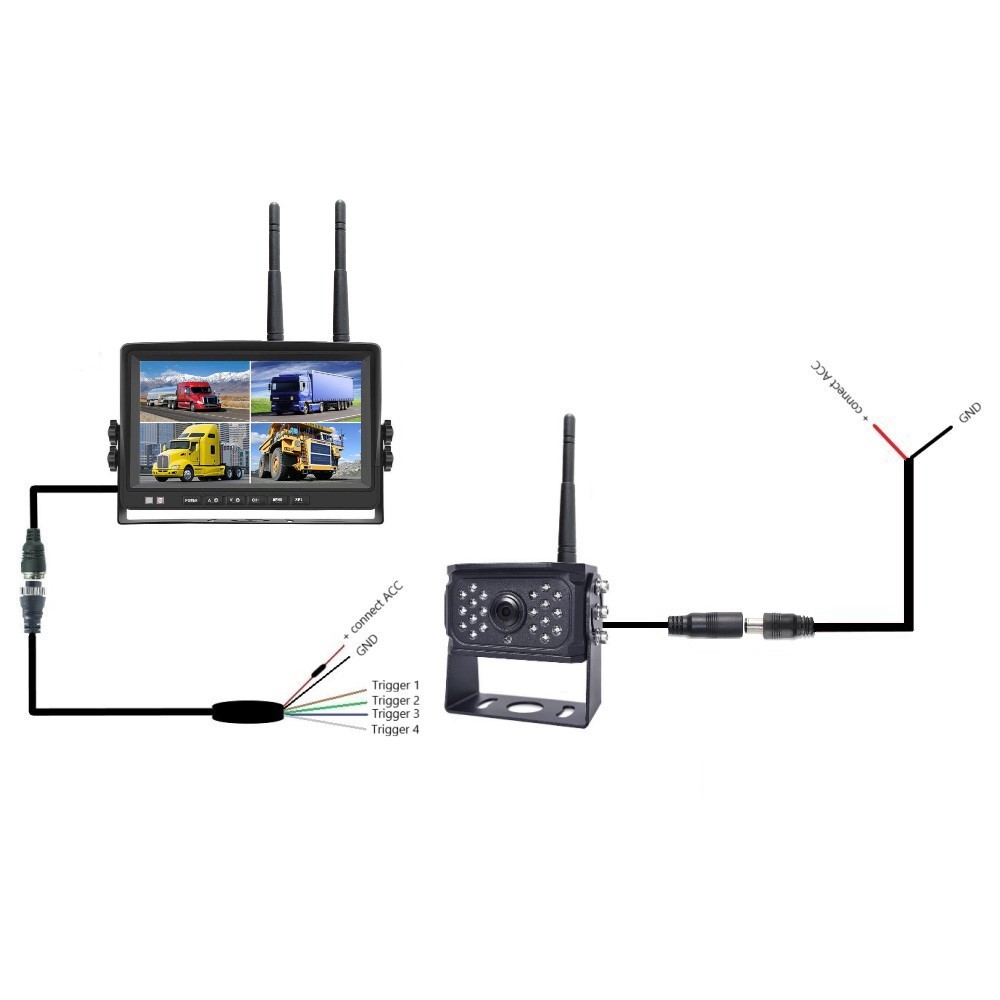

7. With 4* trigger wire, support trigger delay.

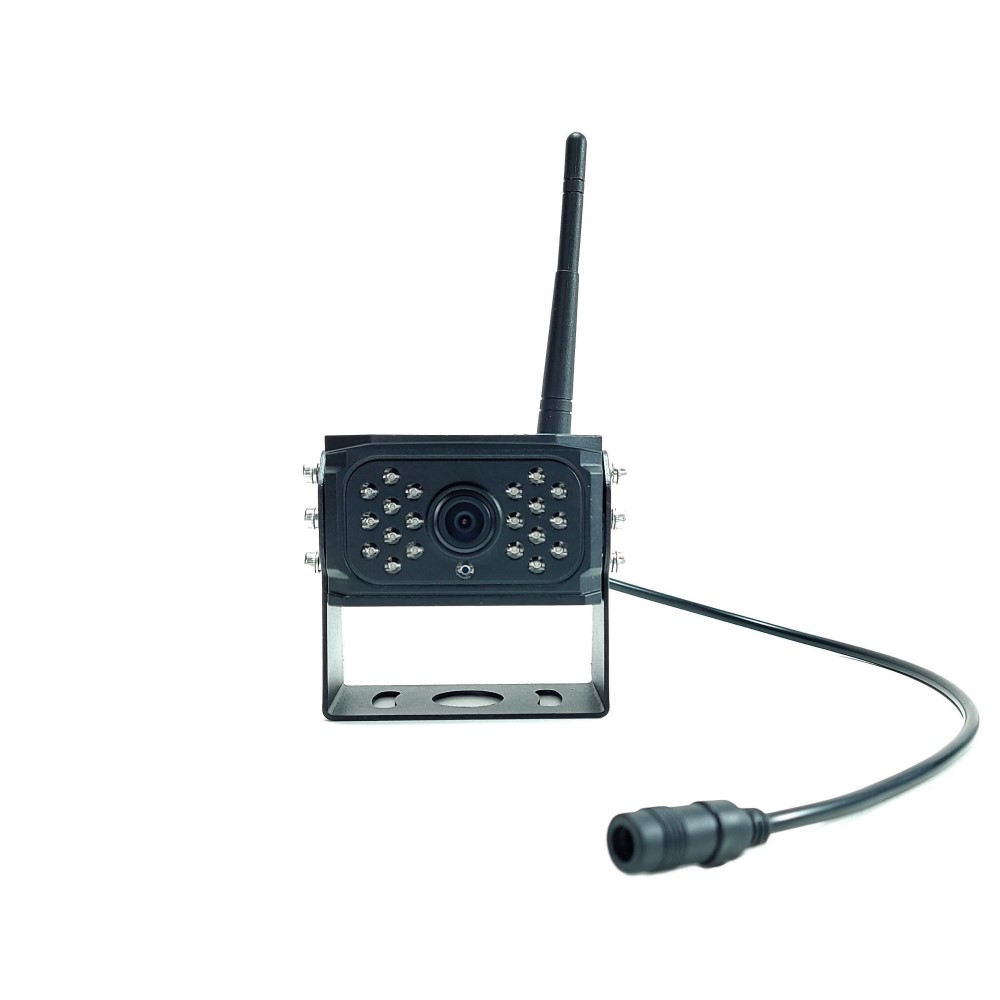

Wireless Camera(Standard with 1*camera)

1. 1/2.9" image sensor GC2053 1920*1080,Output:AHD1080P

2. Metal shell ,waterproof:IP69K

3. All glass HD 5G lens with IR-CUT,Angle:125°(fisheye lens 150° for choice)

4. IR lights automatic light up in dark,Minimum illumination: 0 lux

5. Standard camera housing:CMR027A(CMR011/025/027B for choice)

6. All glass HD 6G fisheye lens with IR-CUT,Angle:170° for choice

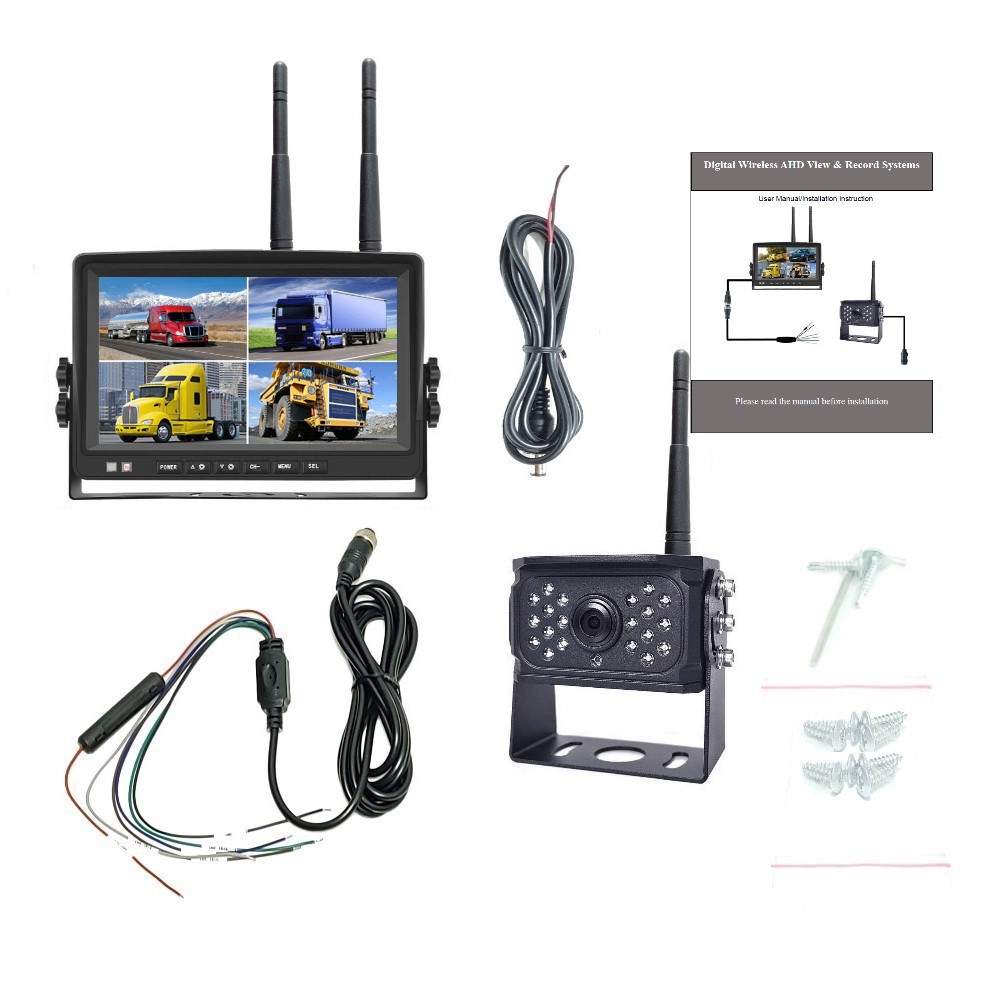

Accessories: Monitor with bracket&Sun canopy&sticker+tail cable+3*antenna

camera+DC power cable+screws+spanner
