1.Detects obstacle while reversing

2.Detection range:standard is 3M,(Any range within 5M can be customized)

3.Reverse polarity protection, lightning protection,Anti-vibration

4.work voltage:24V,withstand voltage:9-35V.output:12V-1.5A(OR 24V-2A) to buzzer and camera,Default does not supply power to Monitor (But accept 12V )

5.work temperiture:-30-70℃,storage temperiture:-40-80℃

6.Waterproof host, sensors,level: IP69K

7.Beep Intensity:90dB,Monitor will show the distance & direction of the obstacle, different distances different 4  type beep frequency.(Beep rules can be customized).

8.Self check:The host will detect the faulty sensor and prompt on monitor

9.Sensitivity ：2M(1.5-3M Adjustable)

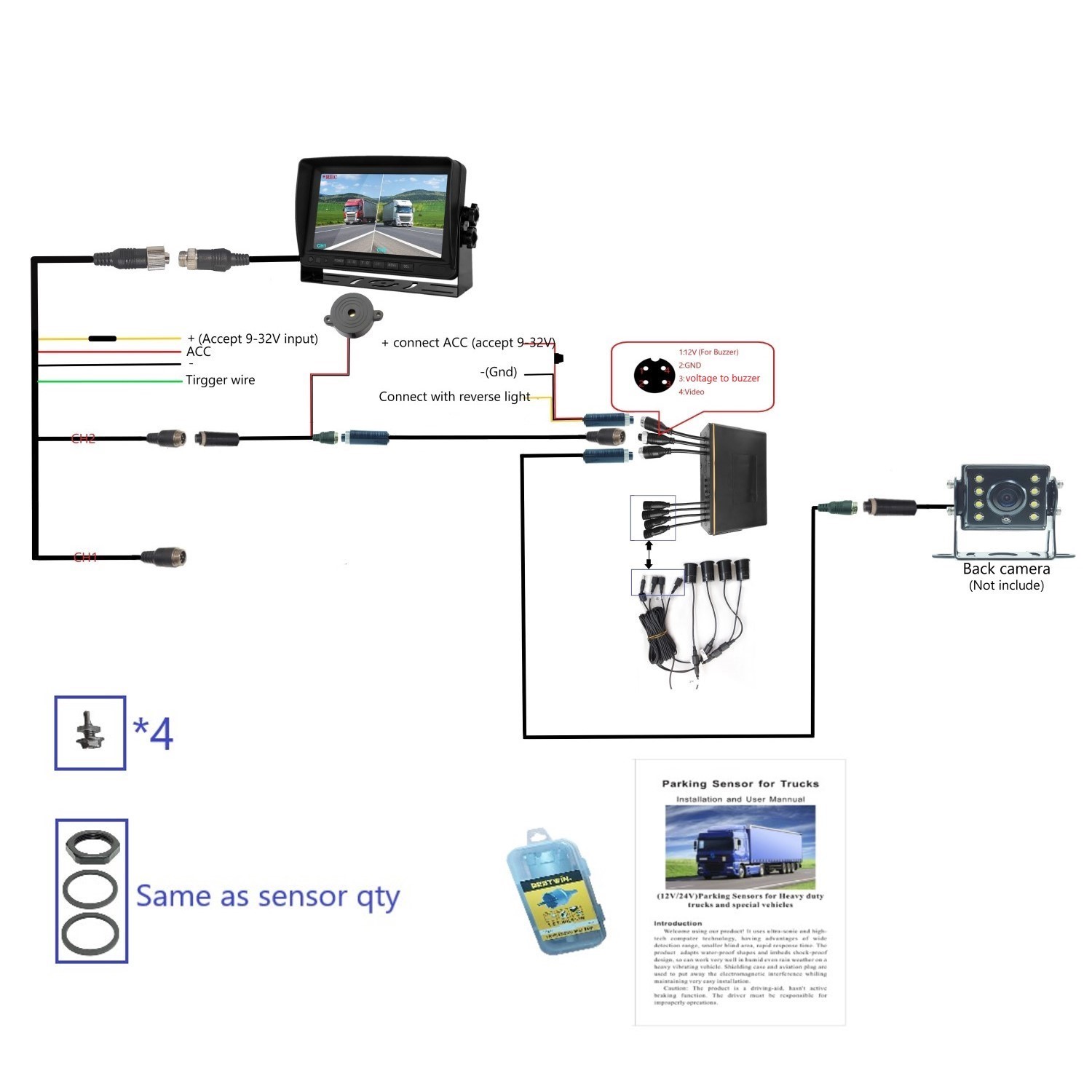

10.Standard Parts:4*27mm Single angle sensors(ABS shell ),4*3M sensor cables,1*buzzer,1*20M cable,1*host,1*1M power cable,1*drill

Optional Function:

Double angle sensor(ABS shell ) for choice

2 types sensors for choice

6 sensors//8 sensors

Camera and camera cable,Monitor

Support AHD camera
