CVBS solution

1.Images sensor(optional)

  1/3" PC2099:968*488. 5G lens, Angle: 140°, Minimum illumination: 0.1 lux

2.TV system: PAL/NTSC (Default NTSC)

3.Work voltage：DC12V (12-24V for option), DCDC Buck module on tail cable, Current: <100ma

4.Waterproof: IP69K

5.white wire: mirrored//original switch; green wire: guide line switch. Default: Mirrored/Guide line

6.Option: 6G fisheye lens(+1USD), Moving guide line

AHD solution

1.Images sensor(optional)

  1/4" GC1054+NVP2438:1280*720. 6G fisheye lens. Angle:160°

  1/2.9" GC2053+FH8536:1920*1080. 6G fisheye lens. Angle:170°

2.TV system:720P default NTSC / 1080P default PAL

3.Work voltage：DC12V(12-24V for option).DCDC Buck module on tail cable, Current: <100ma

4.waterproof: IP69K

5.Minimum illumination:0.1 lux

6.white wire: mirrored/original Switch; green wire: guide line switch; Orange Wire: AHD/CVBS switch. Default: AHD/Mirrored/Guide line

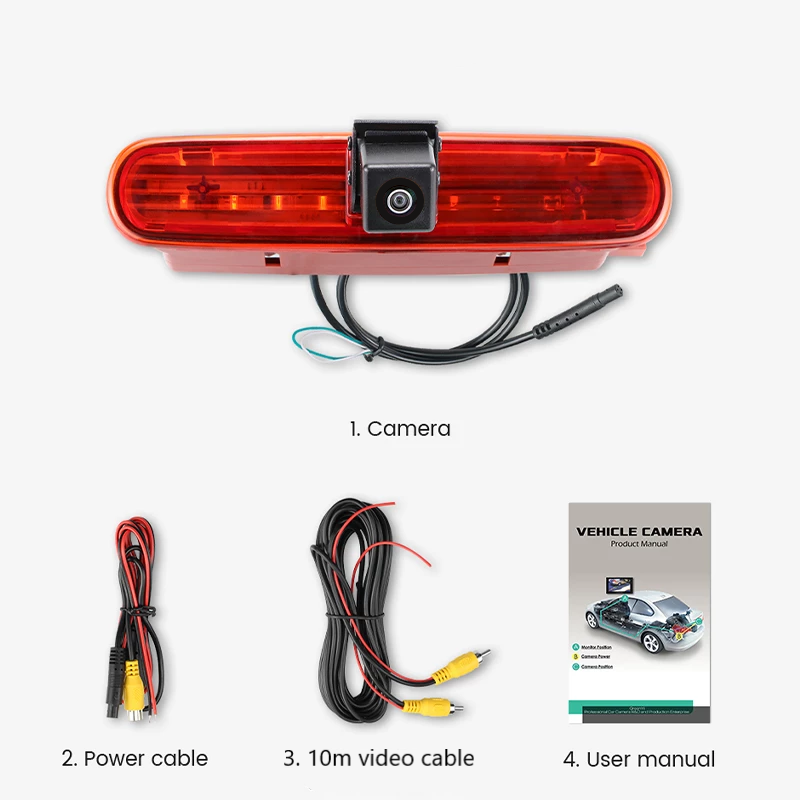

Accessories: Camera+ Manual+ 10M video cable+ BMW to RCA cable

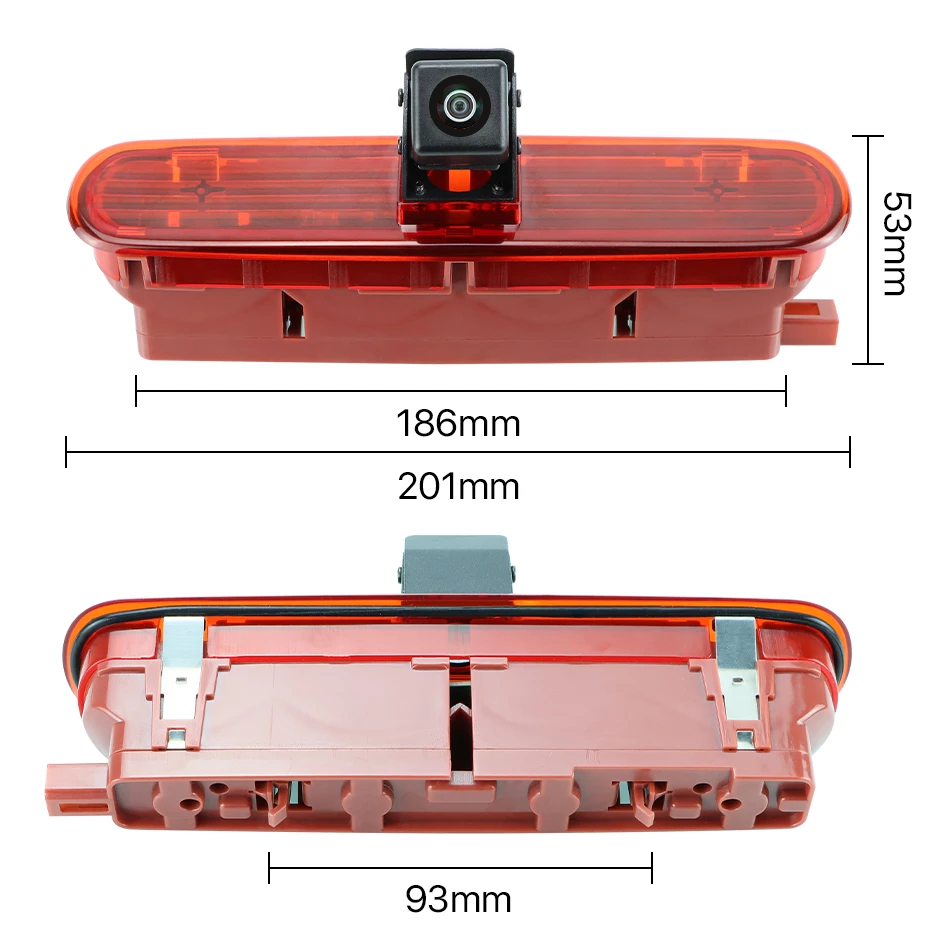

Remark: In order to cameras can be installed, please confirm the picture and size of the camera housing before ordering

Description of CVBS camera switch

Description of AHD camera switch
