CVBS solution

1.Images sensor(optional)

  1/3" PC2099:968*488. 5G lens, Angle: 140°, Minimum illumination: 0.1 lux

2.TV system: PAL/NTSC (Default NTSC)

3.Work voltage：DC12V (12-24V for option), DCDC Buck module on tail cable, Current: <100ma

4.Waterproof: IP69K

5.white wire: mirrored//original switch; green wire: guide line switch. Default: Mirrored/Guide line

6.Option: 6G fisheye lens(+1USD), Moving guide line

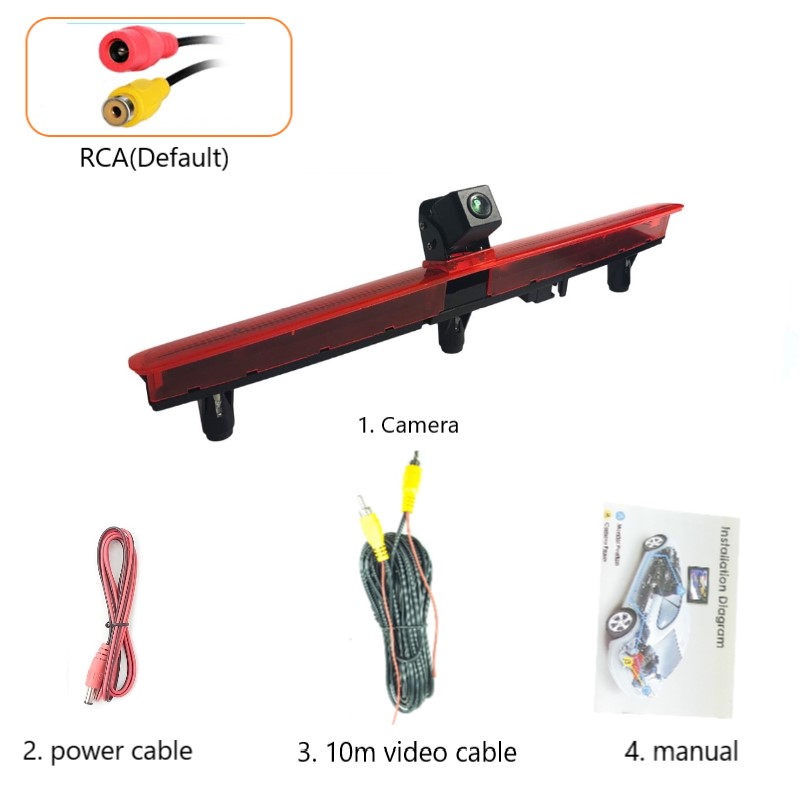

Accessories: Camera+ Manual+ 10M video cable+ power cable

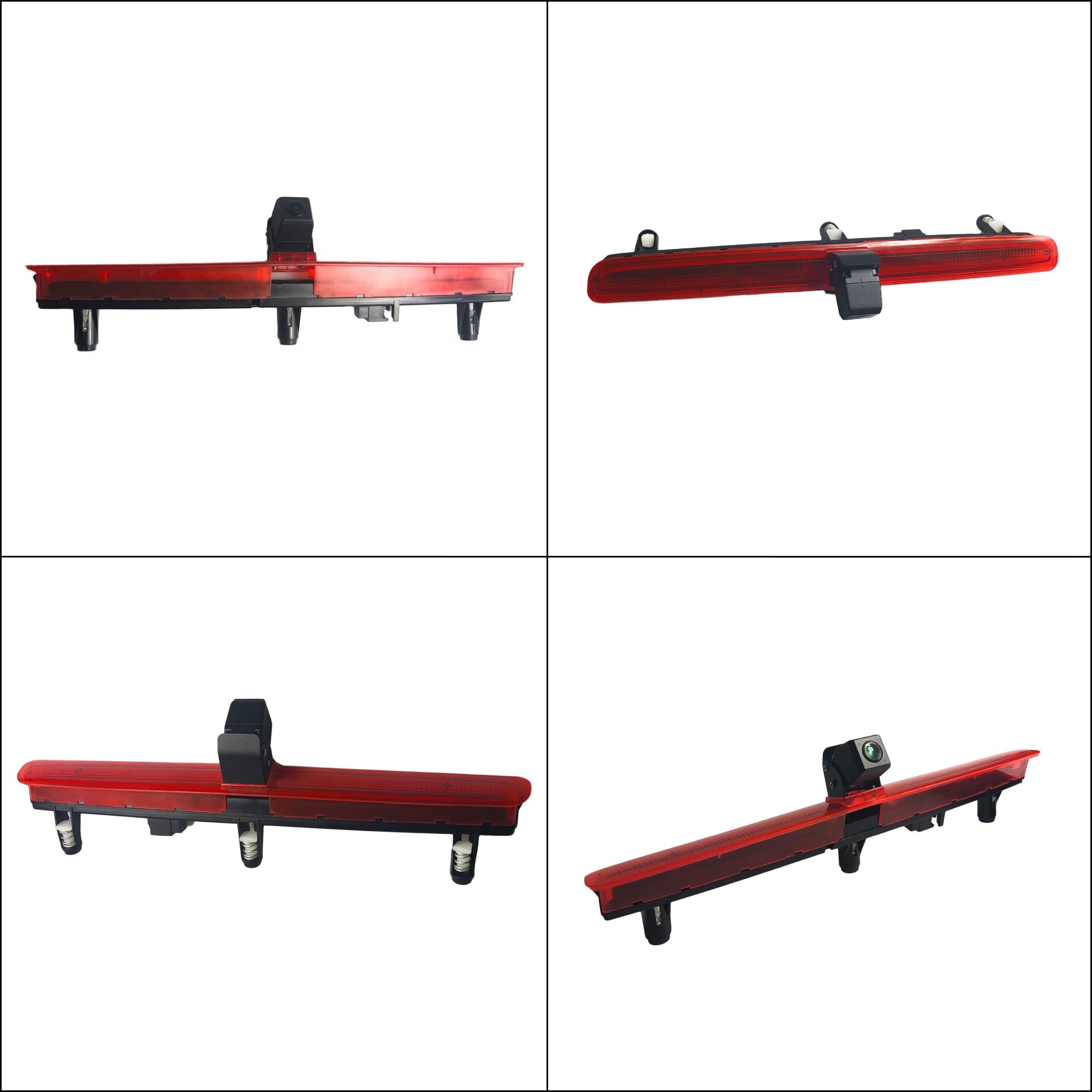

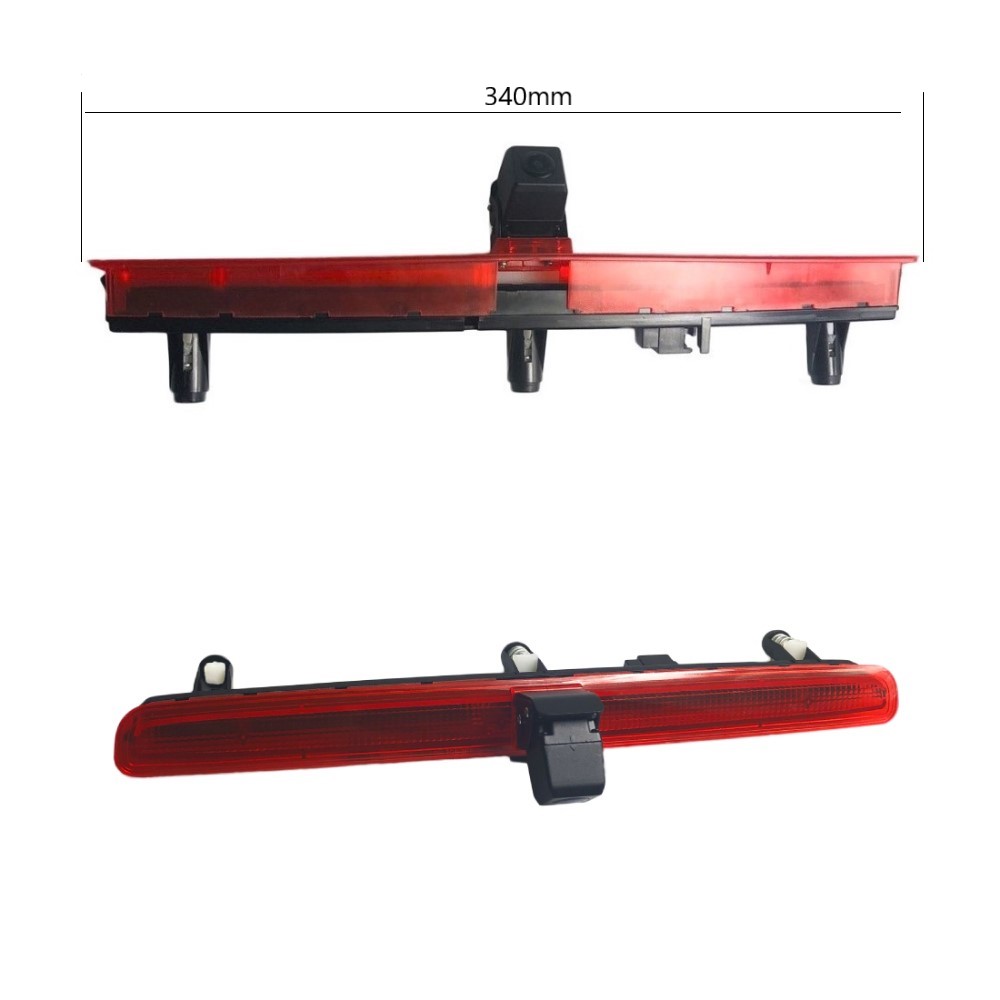

Remark: In order to cameras can be installed, please confirm the picture and size of the camera housing before ordering

Description of CVBS camera switch
