1. 1/2.7" Images sensor: 1920*1080, Output 1080P/720P for choice

2. TV system: PAL/NTSC for choice

3. Nominal voltage: 12V-24V, Current: <200ma

4. Housing Material: ABS, Waterproof: IP69K (Inside Filled with glue)

5. Night vision: Minimum illumination: 0.1 lux

6. 1/2.7” f2.8mm lens, diagonal view angle:140°（Horizontal: 120°, vertical: 70°）

7. Built in 9.9-10.5GHz electromagnetic wave sensor, can be detect obstacle distance

8. Detection range: 3M, Detect accuracy: 0.1m

9. Horizontal detect angle: 165°，Vertical detect angle: 105°

10. OSD obstacle distance and correspond 4 different color frame. Buzzer will correspond to the obstacle distance beep different frequencies.

Remark: When order pls let us know is for install on vehicle side/ back / front. For different side we have different beep rules for choice.

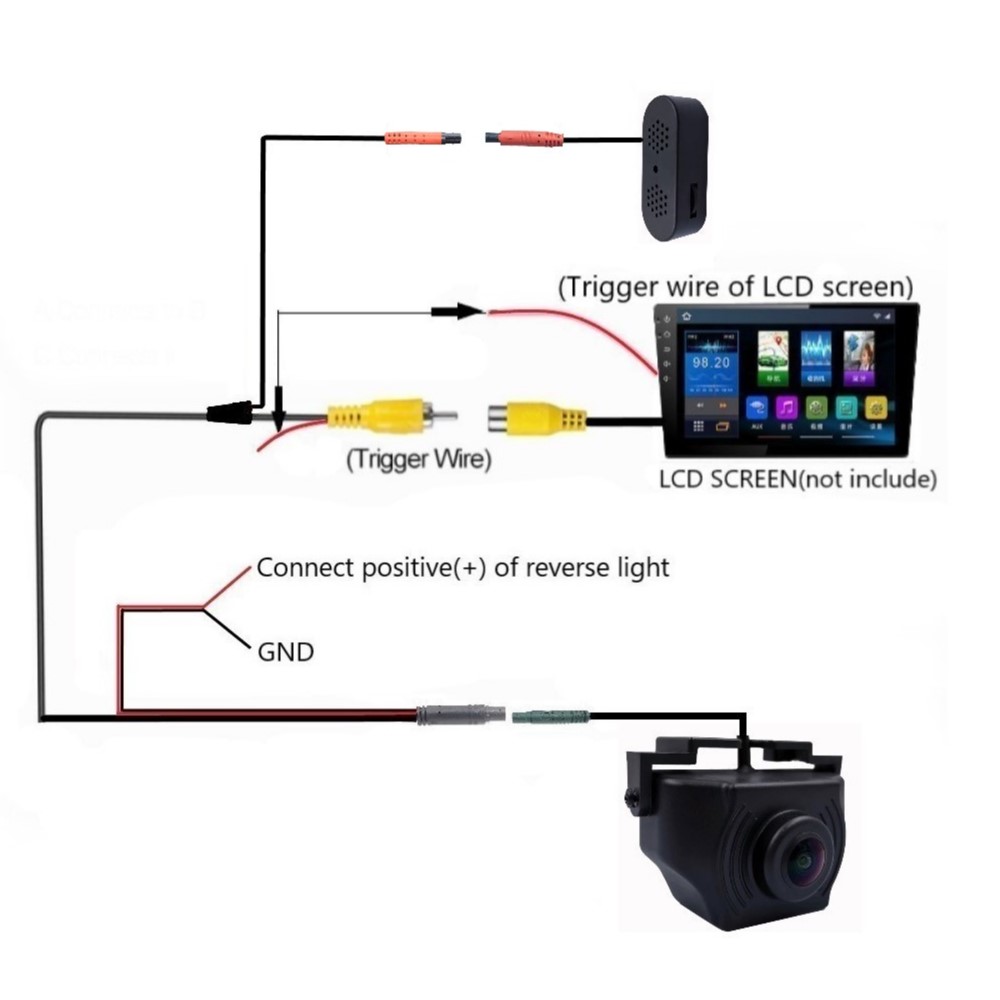

Recommend: Power from reverse lights

●Default: Mirrored image/ No Guide line/ 4pin connector / NTSC/720P/ For install on back.

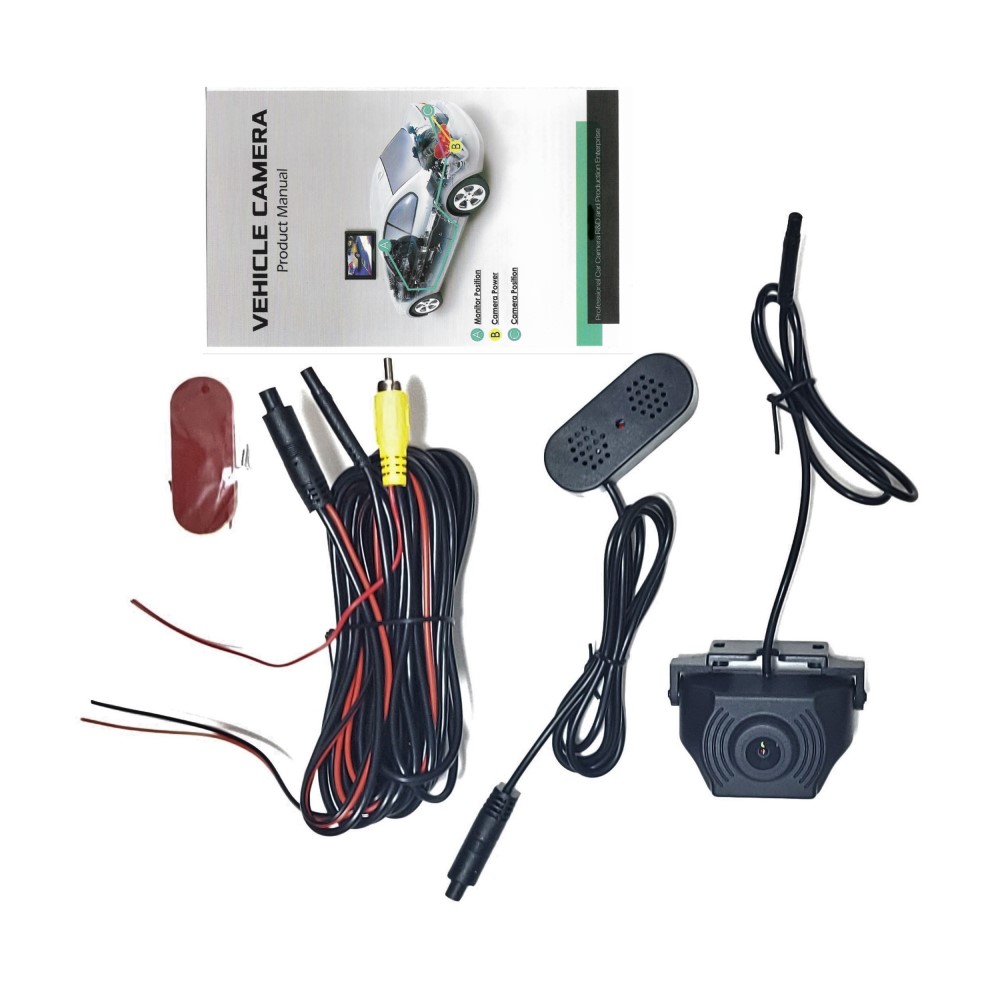

●Accessories:Camera+ 7m composite cable+ buzzer + Manual+ screws
