1.Images sensor(optional)

  1/4” PC7080:648*488. 5G lens, Angle:110°, Minimum illumination: 0.2 lux

2.TV system: PAL/ NTSC (Default NTSC)

3.Work voltage: DC12V (12-24V for option), DCDC Buck module on tail cable, Current: <100ma

4.Metal shell, waterproof: IP68

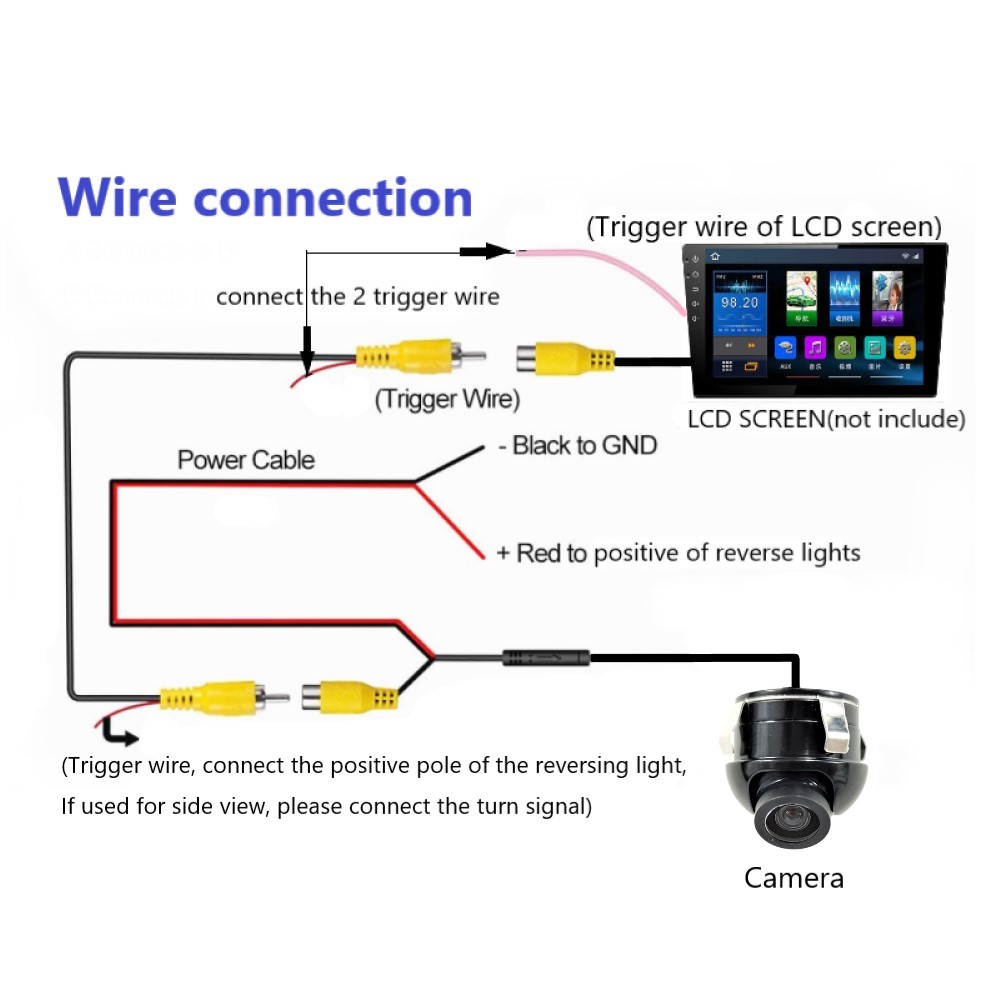

5.white wire: mirrored/ original switch; green wire: guide line switch. Default: Mirrored/Guide line.

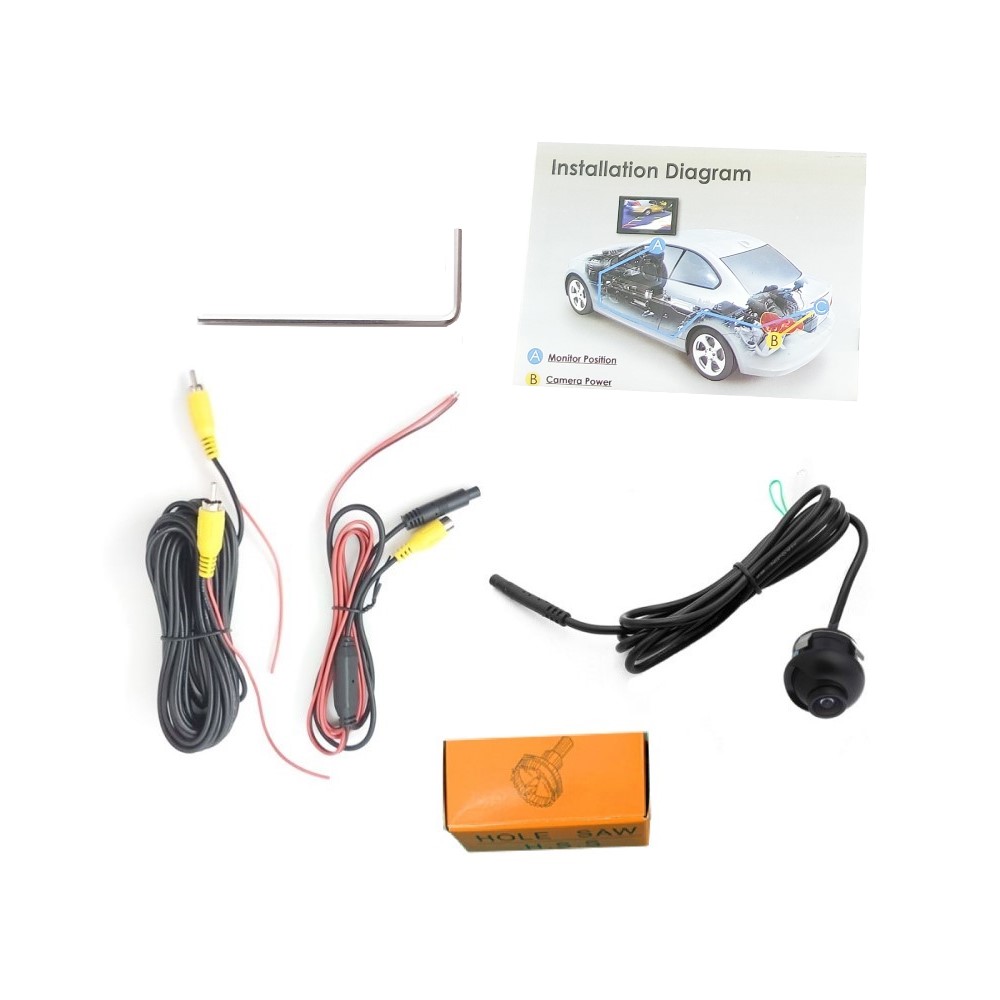

Accessories: camera+Manual+6M video cable+ BMW to RCA cable+ drill+ spanner

White wire: mirrored / original switch，Green wire: for switch guide line
