1.Images sensor(optional)

  1/4" PC7080:648*488. 2G2P lens, Angle: 140°, Minimum illumination: 0.2 lux

  1/3" PC2099:968*488. 5G lens, Angle: 140°, Minimum illumination: 0.1 lux

  1/4" PV3109: 1288*728. fisheye lens, Angle:140°, Minimum illumination:0.2 lux

  1/4" GC1054: 1280*720. 6G fisheye lens.Angle:160°, Minimum illumination:0.1 lux

2.TV system: PAL/NTSC(Default NTSC)

3.Work voltage：DC12V(12-24V for option),DCDC Buck module on tail cable,Current: <100ma

4.ABS shell, waterproof: IP69K

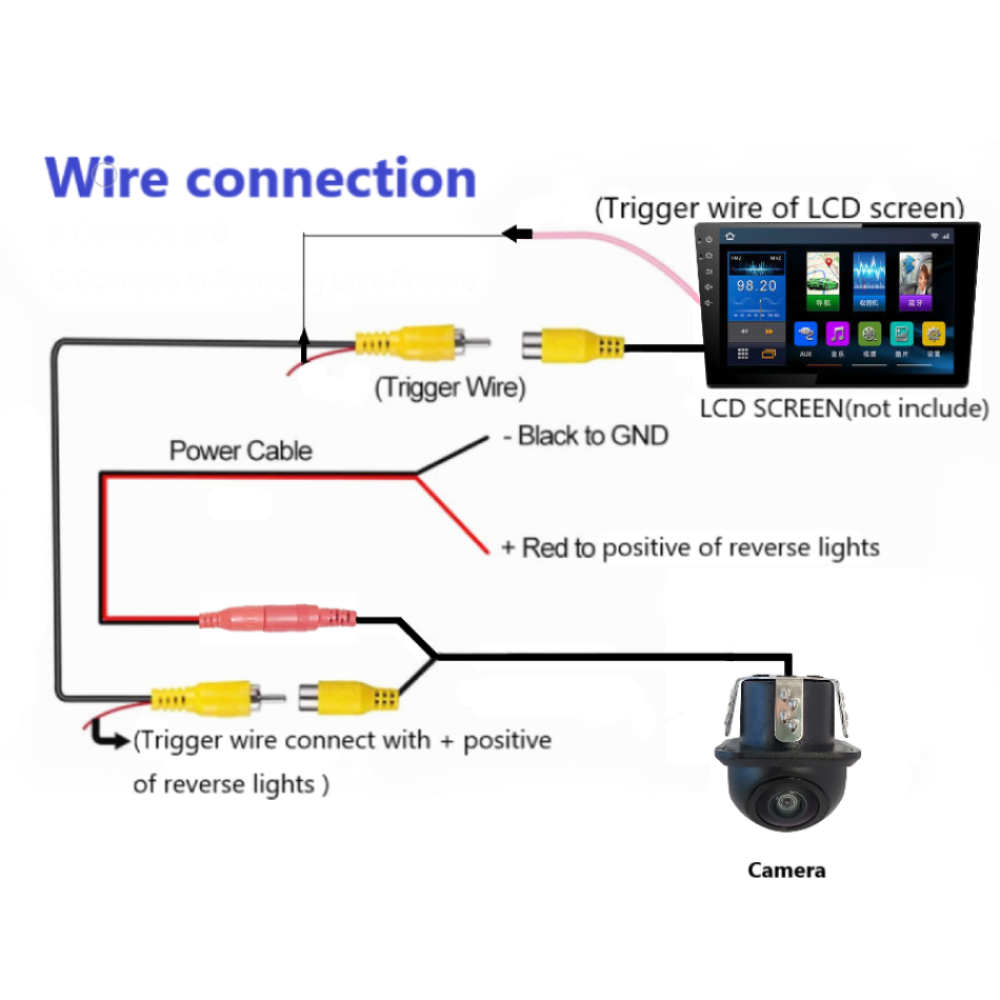

5.white wire:mirrored//original switch; green wire:guide line switch.Default:Mirrored/Guide line

6.Option:fisheye lens(+1usd)

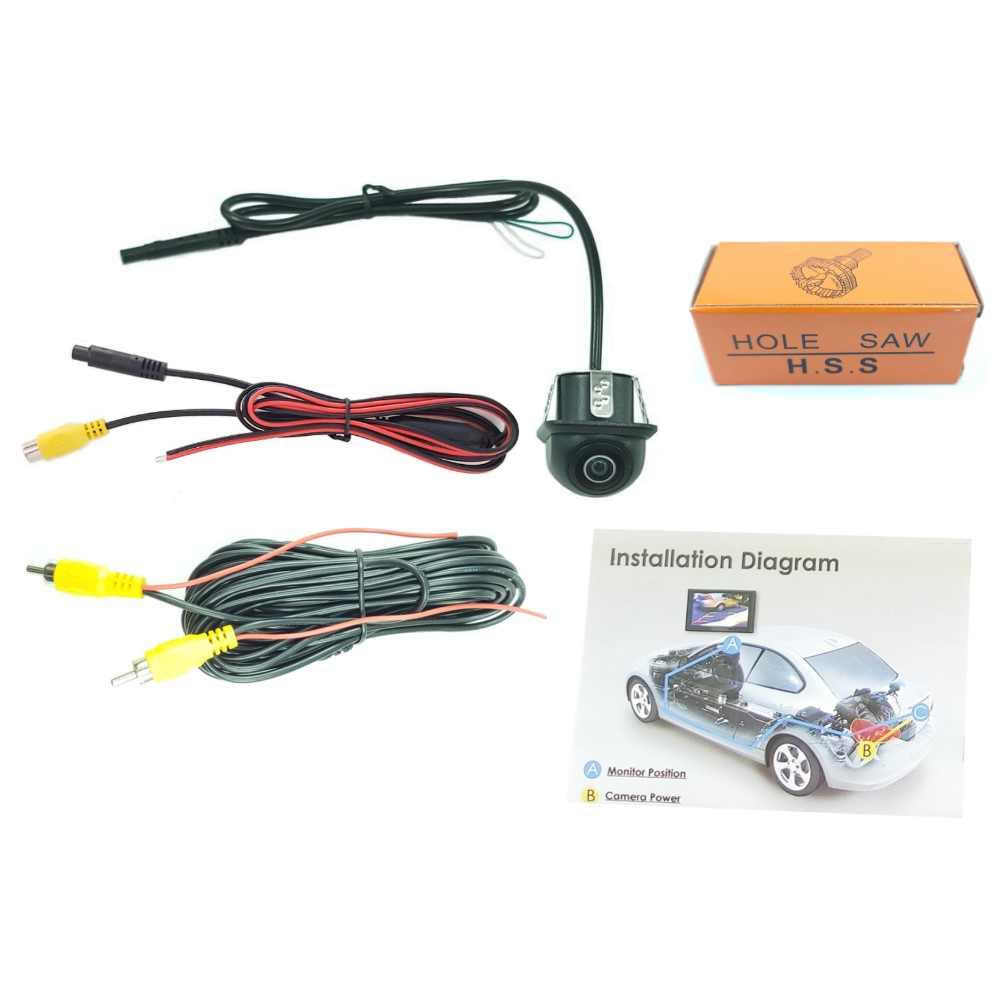

Accessories:Camera+Manual+6M video cable+BMW to RCA cable+drill

White wire:mirrored / original switch，Green wire: for switch guide line
