Professional CODEC chip and software, Display & record high quality video

PAL/NTSC auto switch

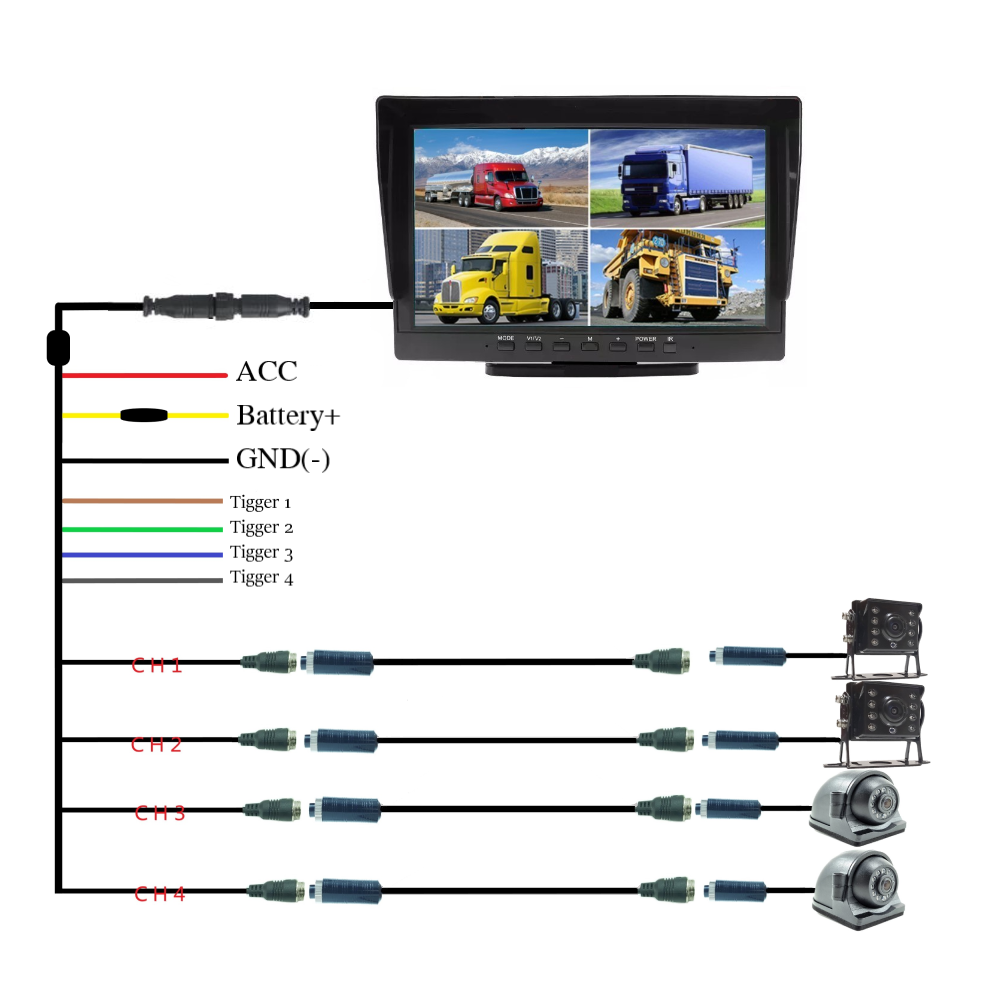

Support 4 cameras input, Support 4/3/2/1 image output meanwhile. 4 trigger wire

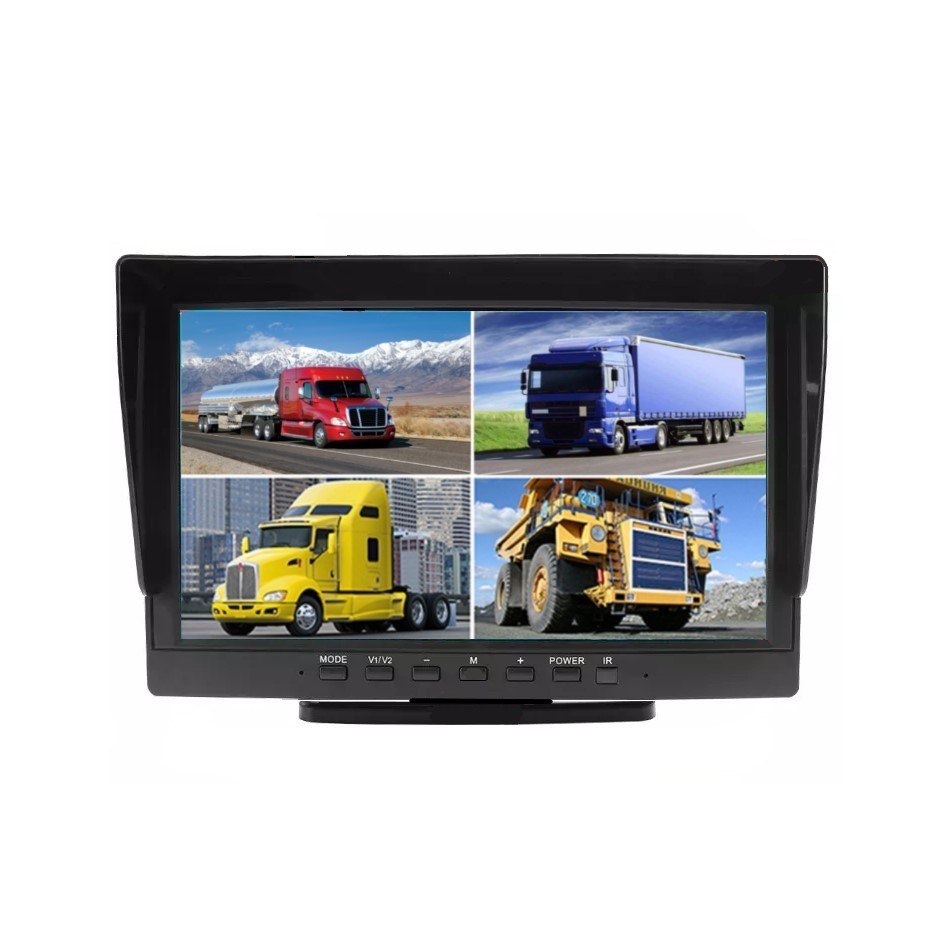

IPS:1024*600, brightness:600cd/m², Contrast: 550:1, view angle:U:85,D:85, R/L:85

Nominal input voltage:12V-24V, Withstand voltage:9-36V, 4PIN Output:12V

Each Channel individually or all channel image can be flipped&Mirrored

Each Channel individually or all channel image can be set Brightness/Contrast etc.

Guide line can be set to any one of channels

Support CVBS/AHD720P/AHD1080P cameras and support mixed

Default 4pin aviation connector

With record and playback function, Support multi-channel simultaneous playback and single-channel playback.

Video format:H.264, Supports up to a 256G SD card

Automatic real-time loop recording,

Can be set duration for a single recorded video of each channel (Max 30 min)

Each or all channels can be set to record when flameout (Max12 hours)

Each or all Channels Record video resolution can be set

Playback video supports up to 16 times fast forward and rewind

Lock screen can be record

Optional function (MOQ 50PCS):

Support 8CH

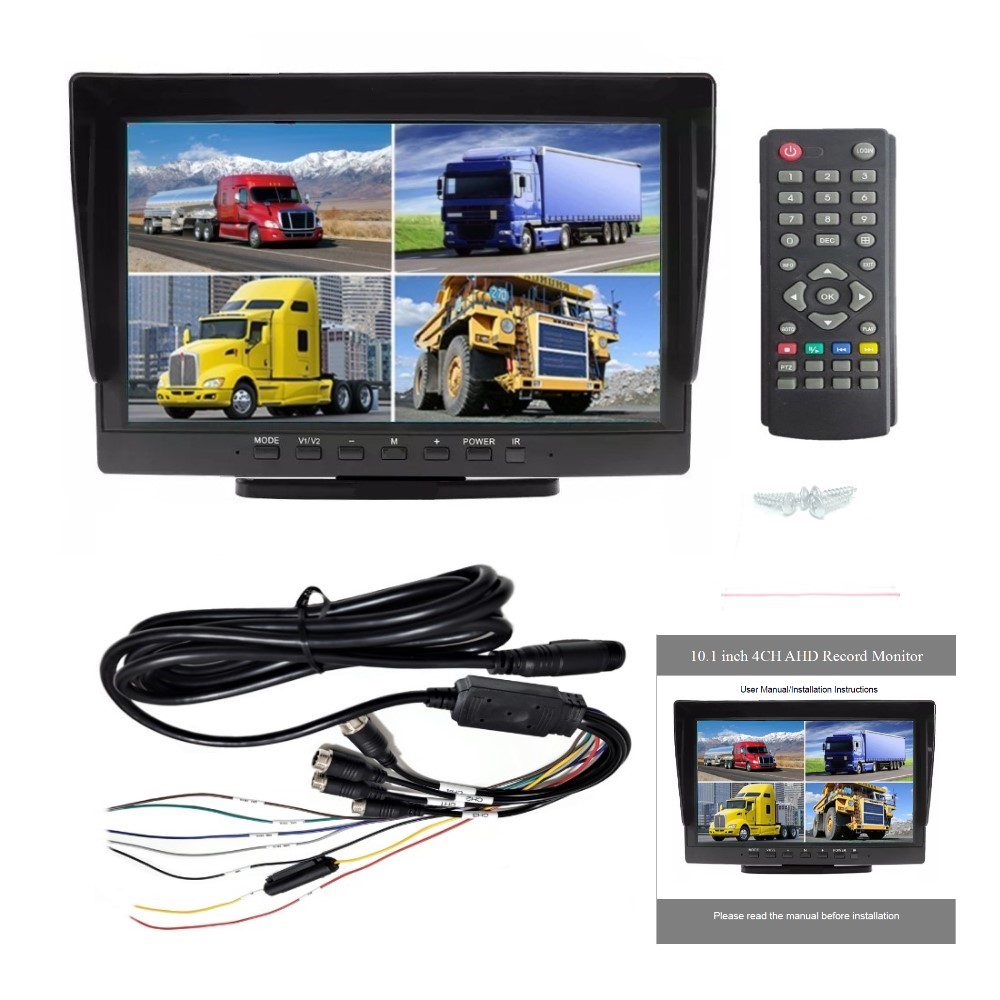

Accessories:monitor+Manual+Tail cable+bracket+sticker+remote control+screws
