PAL/NTSC auto switch

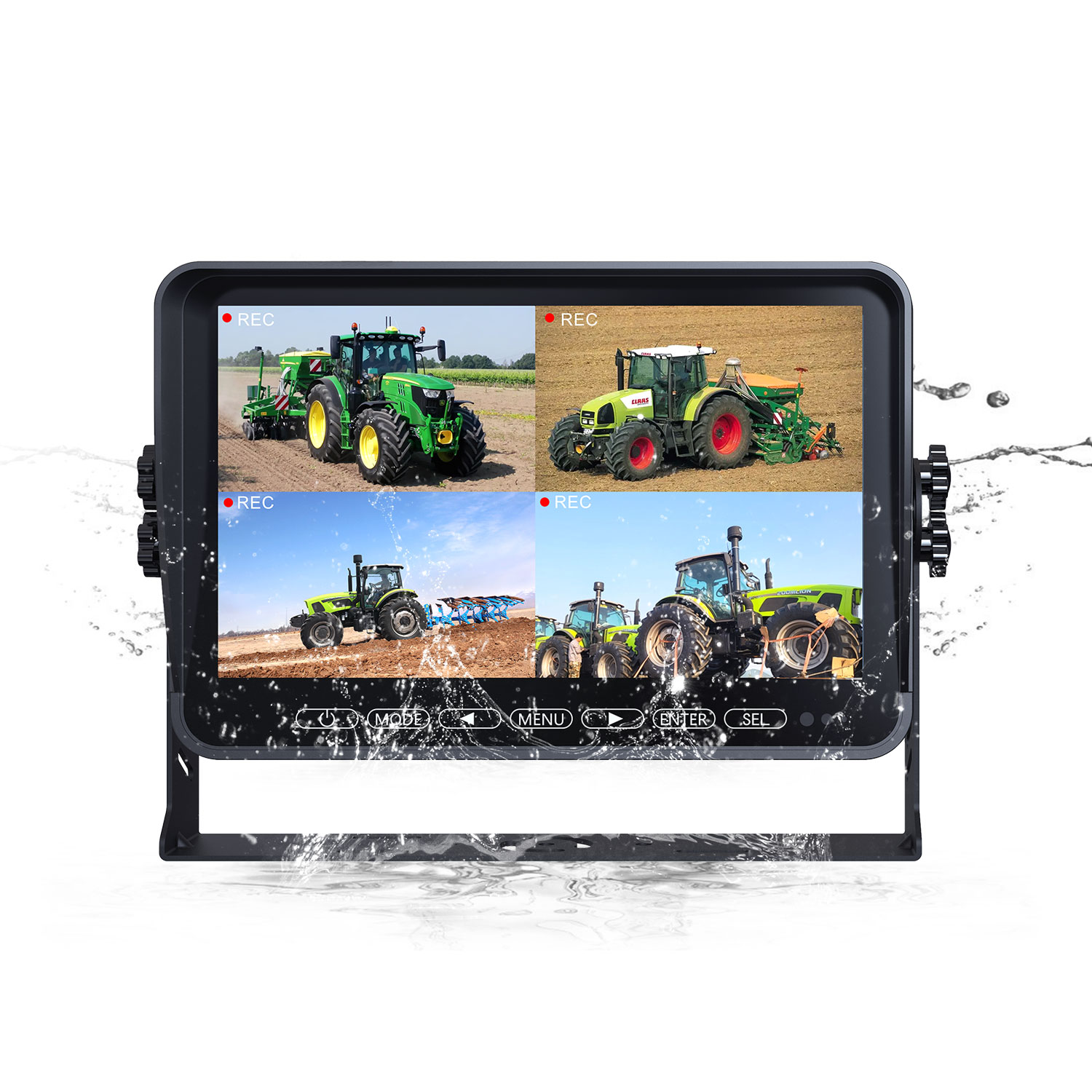

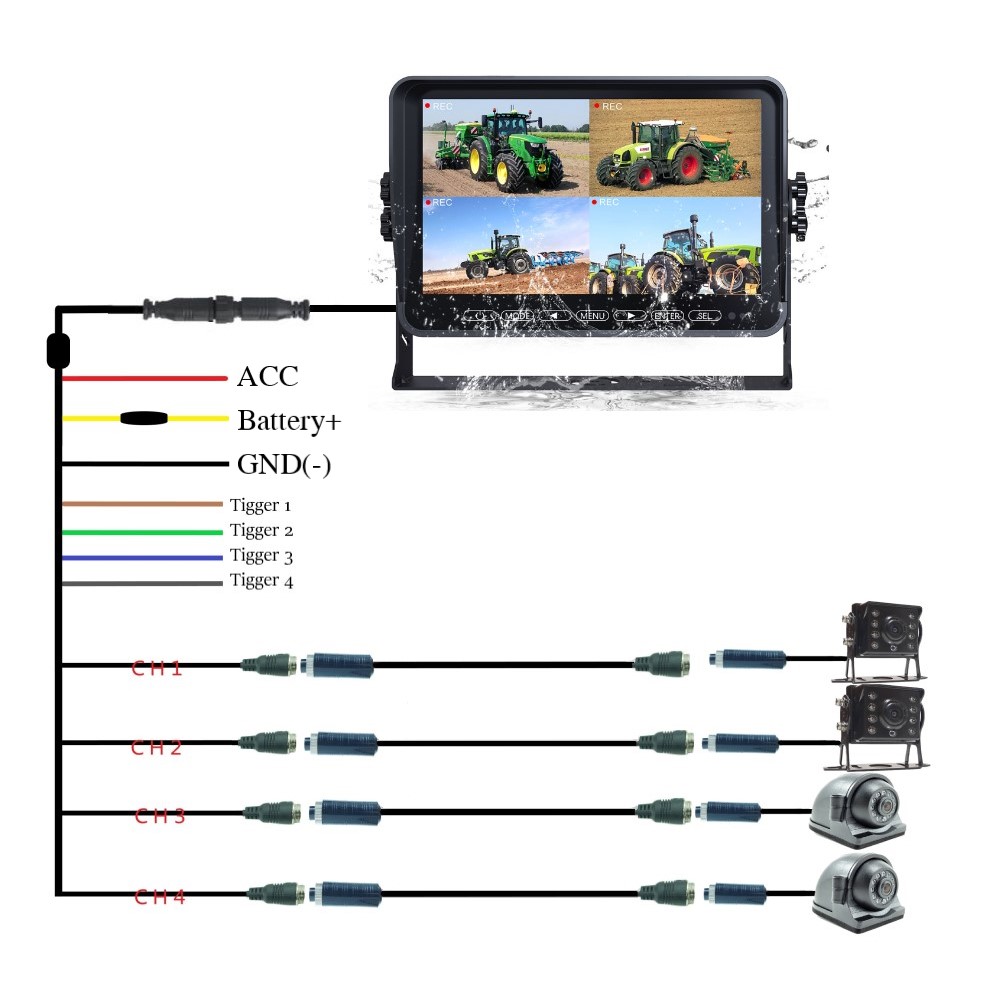

Support 4 cameras input, Support 4/3/2/1 image output meanwhile. 4 trigger wire

IPS:1024*600, brightness:500cd/m², Contrast: 500:1, view angle:U:80,D:80, R/L:80

Nominal input voltage:12V-24V, Current: <500ma, 4PIN Output:12V

Guide line switch of CH2, Image of each CH can be mirrored separately, flip switch all CHs.

Automatically adjust screen brightness

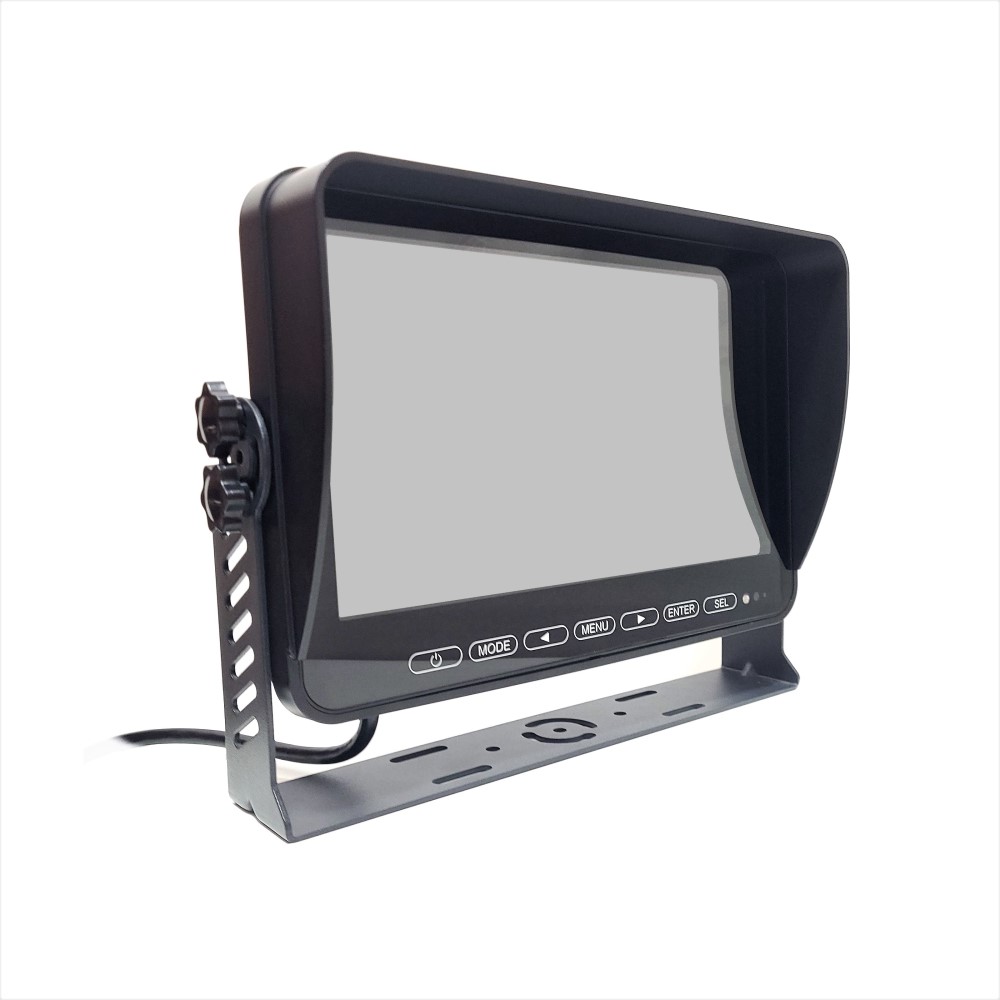

with sunshade panel

Support AHD1080P/960P/720P and CVBS cameras

Default 4pin aviation connector, RCA /4pin BMW/BNC need customize

PC housing, waterproof: IP69K

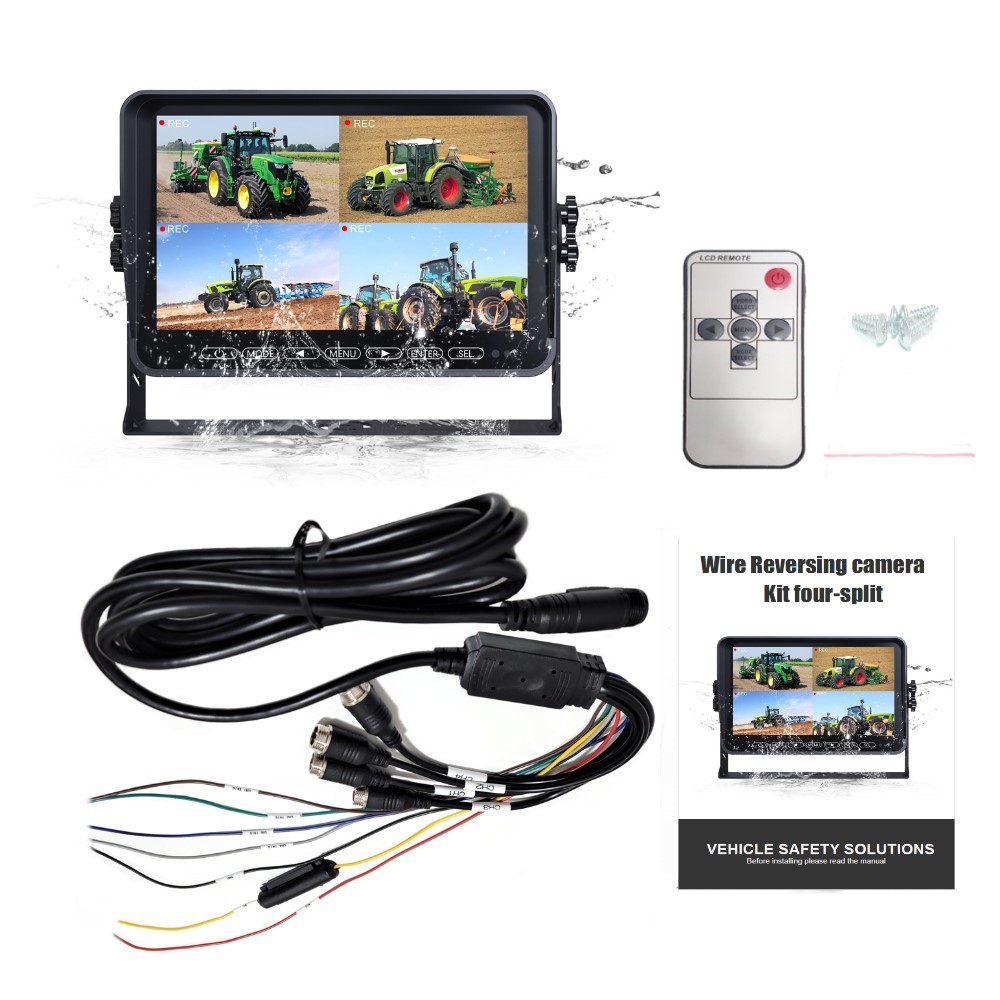

Accessories:monitor+Manual+Tail cable+bracket+sticker+remote control+screws+Sun canopy
