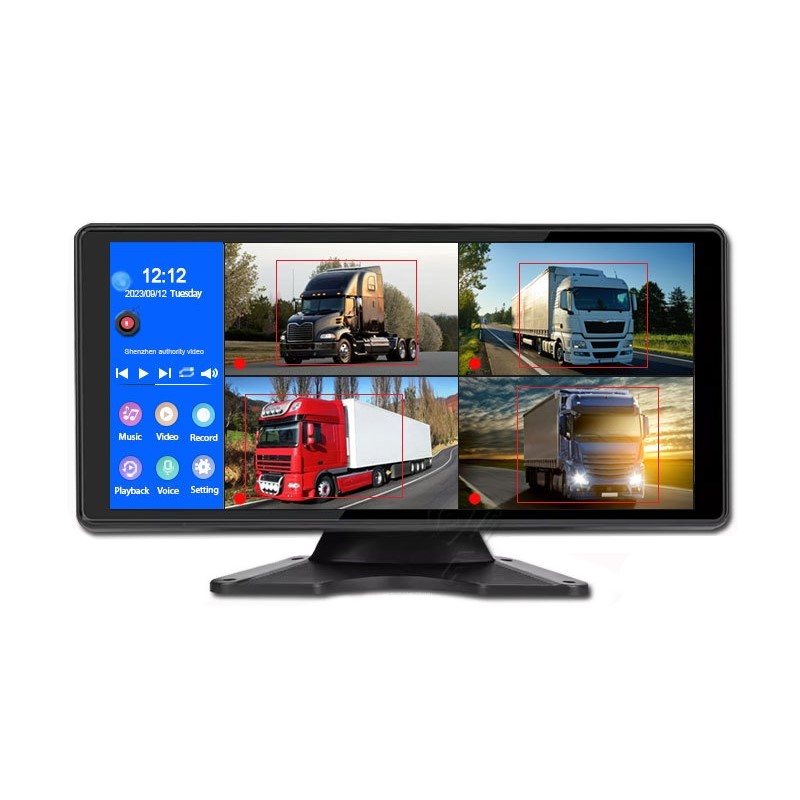

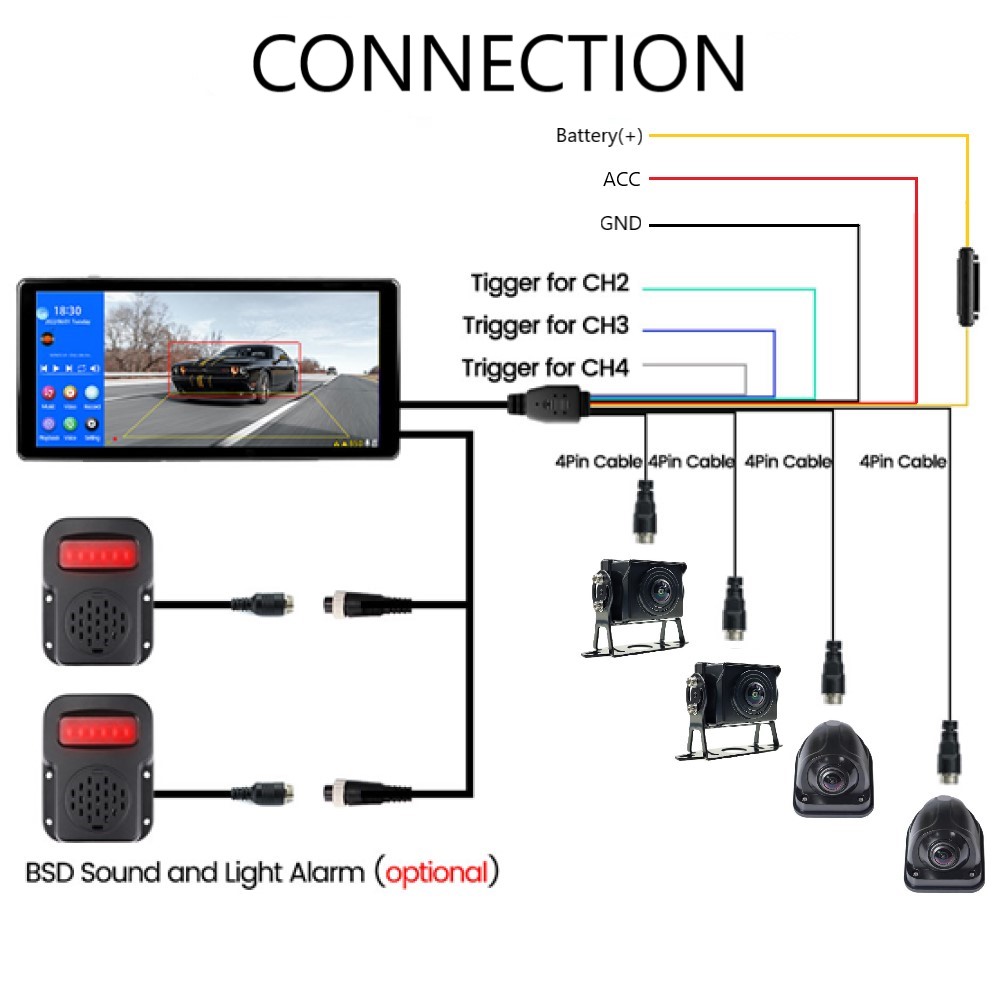

Support 4 cameras input, Support 4/3/2/1 image output meanwhile. 3 trigger wire

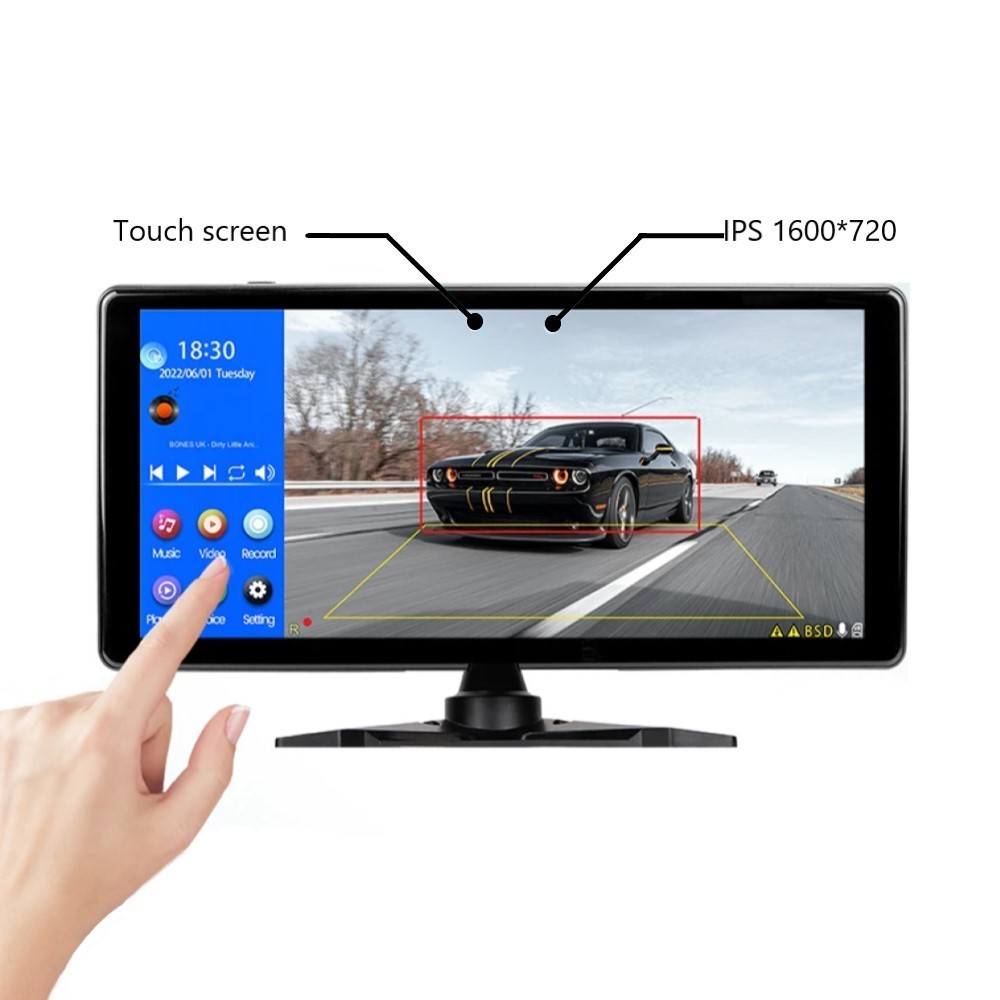

IPS touch screen:1600*720, brightness:500cd/m², Contrast: 500:1, view angle:U:85,D:85, R/L:85

Nominal input voltage:12V-24V, Withstand voltage:9-36V, 4PIN Output:12V

Each Channel separately  can be mirrored/flip

Adjustable Guide line of CH2

Support AHD720P/AHD1080P cameras

Default 4pin aviation connector

Built-in microphone, support audio record

Built-in speaker, provide sound when play MP3 or MP4 / AI alram /playback video

With record and playback function

Video format:MP4, Supports up to a 256G SD card

Automatic real-time loop recording,

Can be set duration for a single recorded video(Max 5min)

Can be set to record when flameout (Max24 hours)

Lock screen can be record.

AI recognition can be ON/OFF, When ON, pedestrians and vehicles can be recognized and alarm.

Each channel can be set AI recognition area.

Alarm delay time can be set

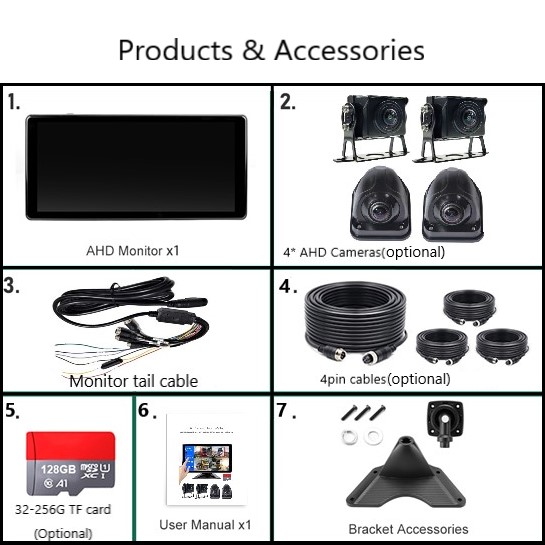

Accessories:monitor+Manual+Tail cable+bracket+screws

Note: When installing this monitor on 12V vehicle, please don't connect with infrared camera with IR-CUT
